Calorimeter

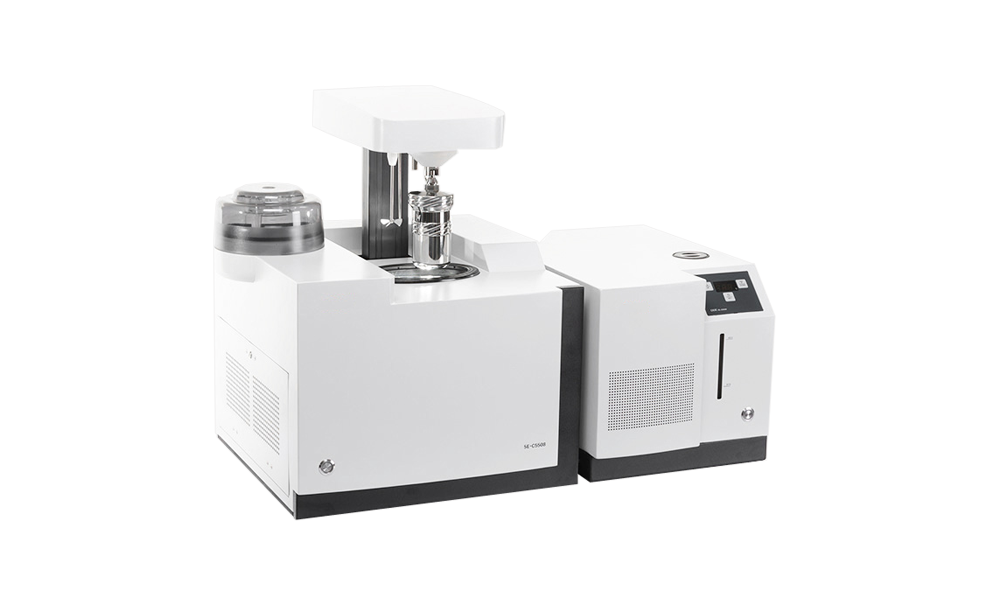

5E-C5508 Automatic Bomb Calorimeter

5E-C5508 is used to determine the calorific value of solid and liquid combustibles including oil, coal, coke, foodstuffs and biomass products. The calorific value is a crucial characteristic for each substance, also the key point to calculate the price of coal, so it will directly affect the economic benefits of the customers. This technique is widely applied in power plants, coal mines, metallurgy, chemical industry, commercial inspection, scientific research, etc.

Fully Automatic Oxygen Charging System

With all 5E-C5500 features, additionally, Integrated oxygen charging system, straight connection to oxygen cylinder via regulator, controlled by solenoid valve, 5E-C5508 is available for oxygen charging automatically.

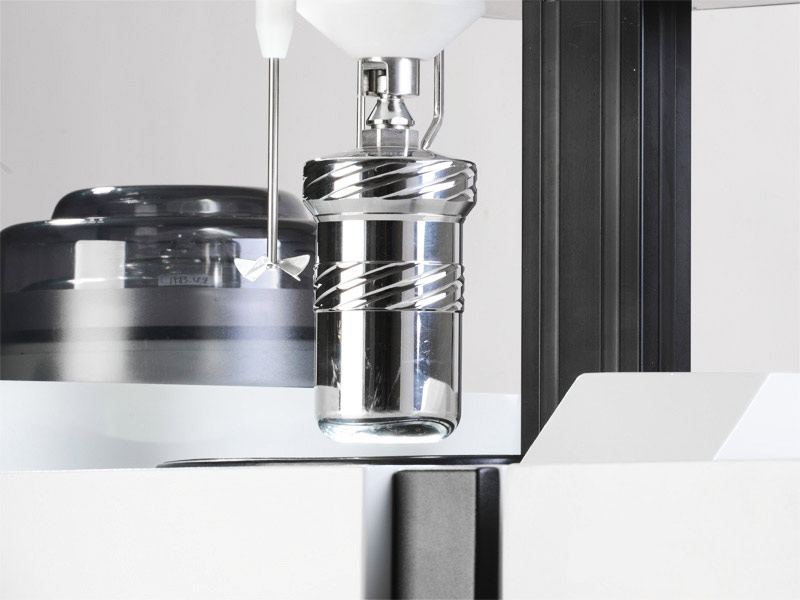

Fully Automatic Oxygen Vessel Lifting System

Convenient operation compared with manual filling, in case of any slipping off. Water filling and draining during lifting, minimize the time for analysis and preparation.

Optimized Design for Reliable Test Result

  • 1. A reliable quantitative measuring cup ensures stable water volume of the bucket.
  • 2. Closed-loop water circulation assures the purity of water system without any additional solution
  • 3. Filter in the bucket purify the water in circulation system.
  • 4. Visible water level indicates the water volume, making it easy to feed sufficient water anytime to minimize the influence of water loss.

    • Technical Details

    Model 5E-C5508
    Conforms to Method AS 1038.5, ASTM D5865, ASTM D4809, ASTM E711, BIS 1350, BS EN 15400, GB/T 213, GB/T 30727, ISO 1928, ISO 9831
    Precision (1g Benzoic Acid) ≤0.05% RSD
    Measuring Range upto 50MJ/Kg
    Sample Mass 0.5 to 1.5 Grams
    Temp. Resolution 0.0001°C
    Control Ability 2 Units/PC available
    Analysis Time per Sample within 6 to 8 mins
    Jacket Type Isoperibol
    Bucket Type Fixed
    Oxygen Vessel Removable
    Heat Capacity Stability ≤0.2% within one year
    Ignition Method Ignition Wire
    Vessel Identification Yes
    Balance Connection Available
    Network Connection Available
    Bucket Filling Automatic
    Oxygen Filling Automatic
    Bomb Vessel Lifiting Automatic
    Power Supply Single Phase, AC220V±10%, 50/60Hz, ≤500W
    Net Weight 75Kg
    Dimensions(LxWxH) Analysis Unit: 580x550x550mm | Temp. Control Unit: 370x540x400

    *continous product improvement may necessitate changes in specifications
